Magnet Gripper MHM

・Attracts and holds heavy objects with a magnet ・Holding force: Max. 1000 N (ø50, Workpiece thickness 6 mm) ・Transfers steel plates without a vacuum 　Support workpieces with holes and uneven surfaces ・Holding force (Attraction force) can be adjusted. ・Drop prevention: Holds workpieces even when air is shut off

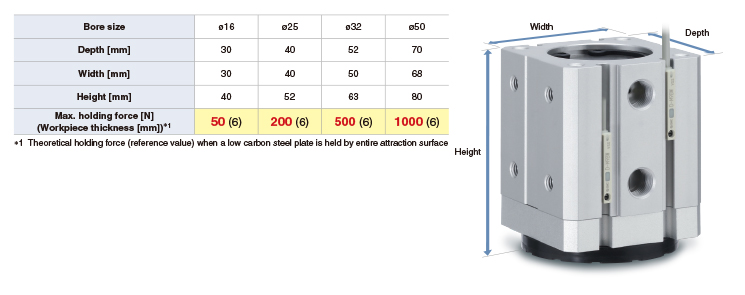

Series	Max. holding force [N] (Workpiece thickness [mm])
MHM-16	50(6)
MHM-25	200(6)
MHM-32	500(6)
MHM-50	1000(6)

■Attracts and holds heavy objects with a magnet

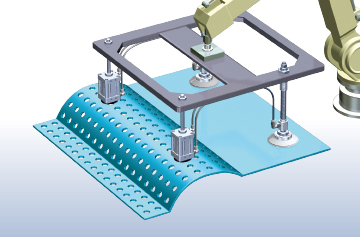

■Transfers steel plates without a vacuum

Support workpieces with holes and uneven surfaces

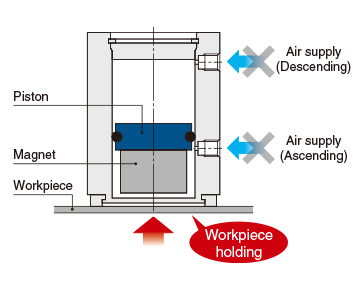

■Drop prevention

Holds workpieces even when air is shut off

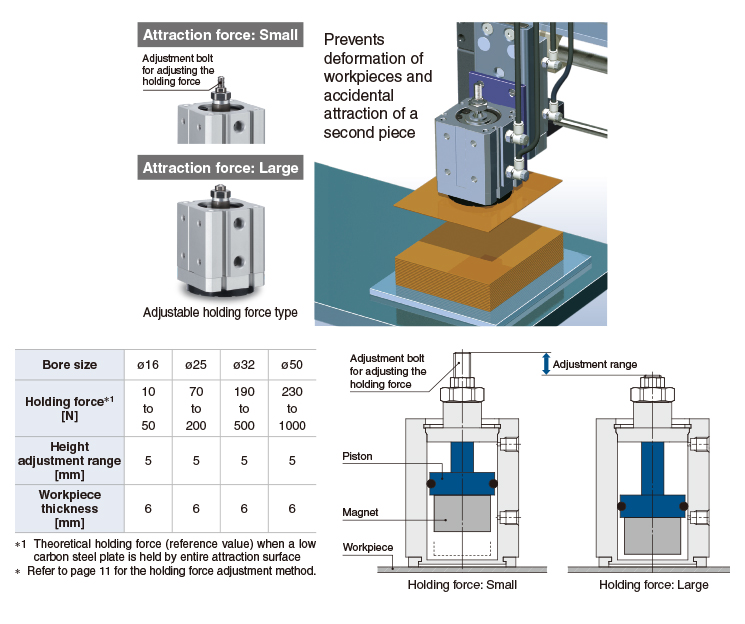

■Holding force can be adjusted by changing the distance between the magnet and workpiece.

■Compact with high holding force

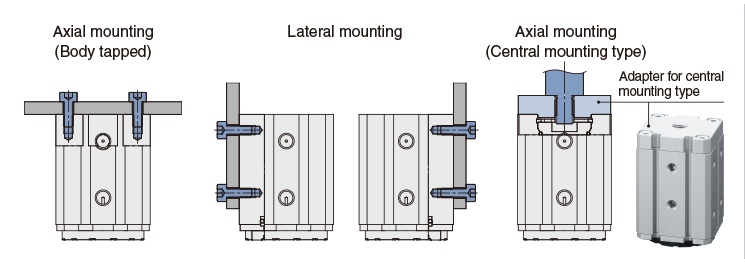

■Mounting

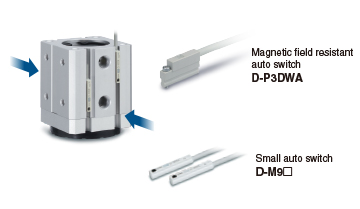

■Auto switches can be mounted on
2 surfaces.

　

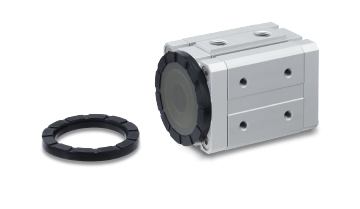

■Cushion pad

Pads are replaceable.
